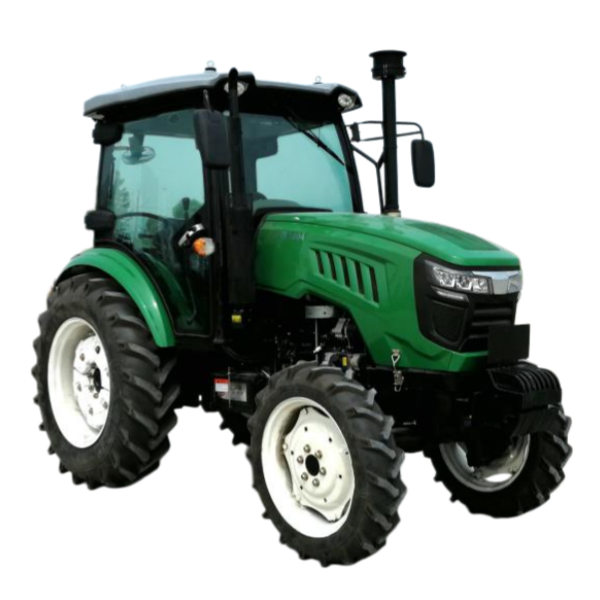

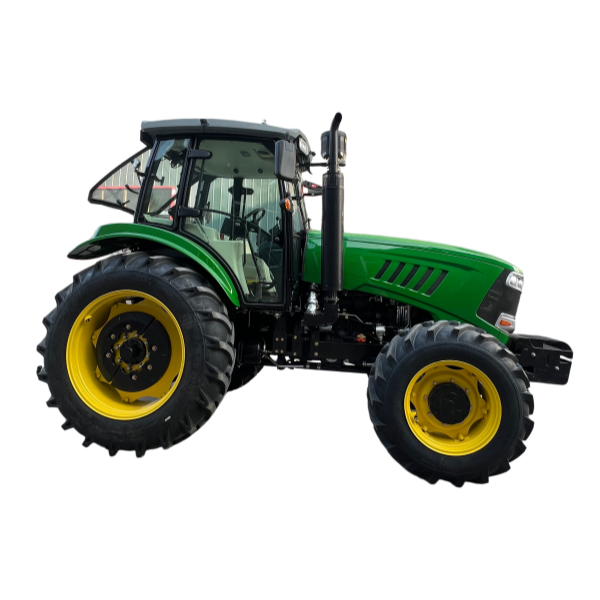

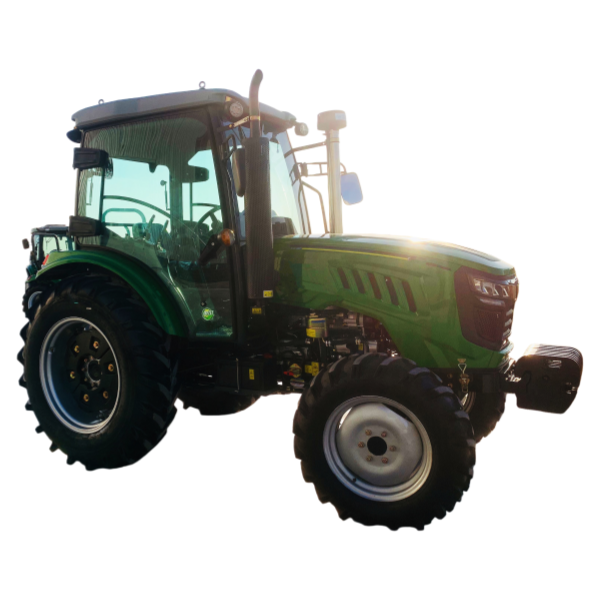

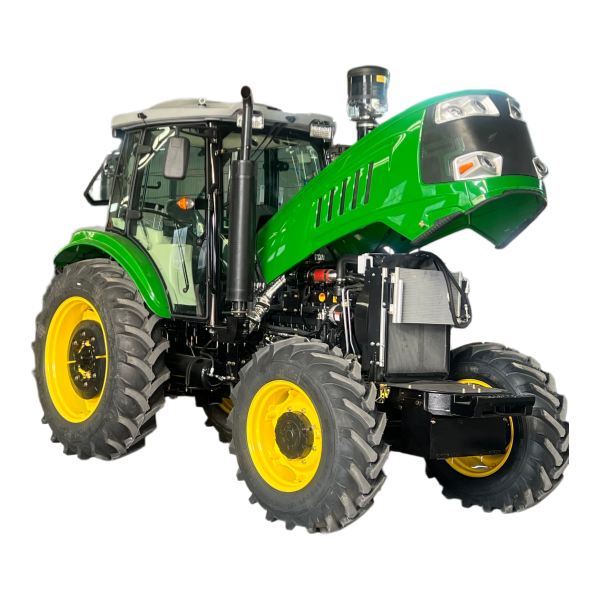

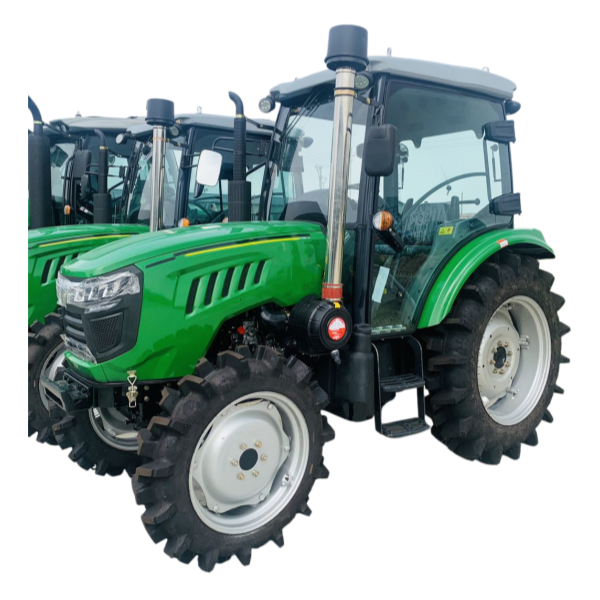

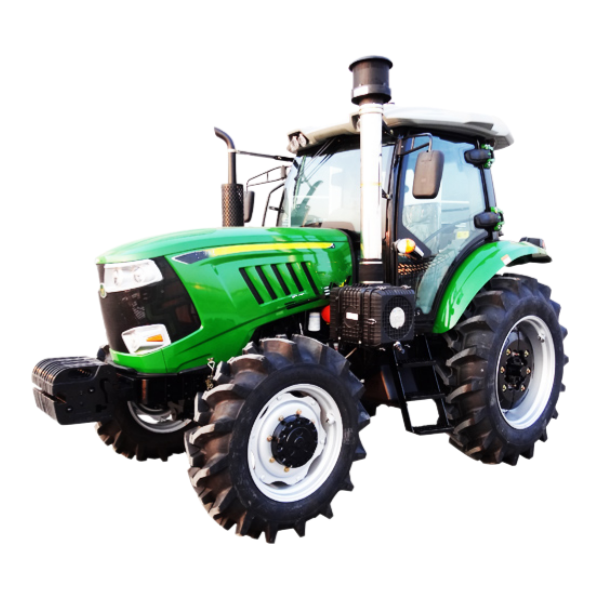

Agricultural core power equipment, equipped with high-horsepower engines and advanced transmission systems. Suitable for heavy-duty operations such as plowing, subsoiling, sowing and straw incorporation. The main workhorse for large-scale farmland operations.
Product Parameters
Model | 404 | 454 | 504 | 554 | ||||
| Drive Type | 4*4 | |||||||
| Engine | ||||||||
| Type Of Engine | Yunnei,Quanchai,Xinchai 4-Cylinder, | |||||||
| Capacity of fuel tank(L) | 38L | |||||||
| Engine power at rated speed (KW) | 29.4 | 33.1 | 36.8 | 40.5 | ||||
| Rated Speed (R/Min) | 2400 | |||||||
| Transmission | ||||||||
| Clutch | dry,dual-stage type | |||||||
| PTO speed | 540/1000rpm or 540/760rpm | |||||||
| Gear shift | 8F+4R/12F+12R(Optional) | |||||||
| Hydraulic system | ||||||||
| Hydraulic output valve | 2-Way （optional） | |||||||
| Three point linkage 3 | ||||||||
| Category of 3-point link | category II | |||||||
| Lifting force(at point of 610mm)KN | 11 | 11 | 12 | 12 | ||||
| Technical parameter | ||||||||
| Overal size(LxWxH)MM | 3650x1700x2155 | |||||||
| Wheel base(MM) | 1924 | 1990 | 2000 | 2040 | ||||
| The smallest clearance(MM) | 310 | |||||||
| Front tire | 8.3-20 | |||||||
| Rear tire | 12.4-28/14.9-24(optional) | |||||||
