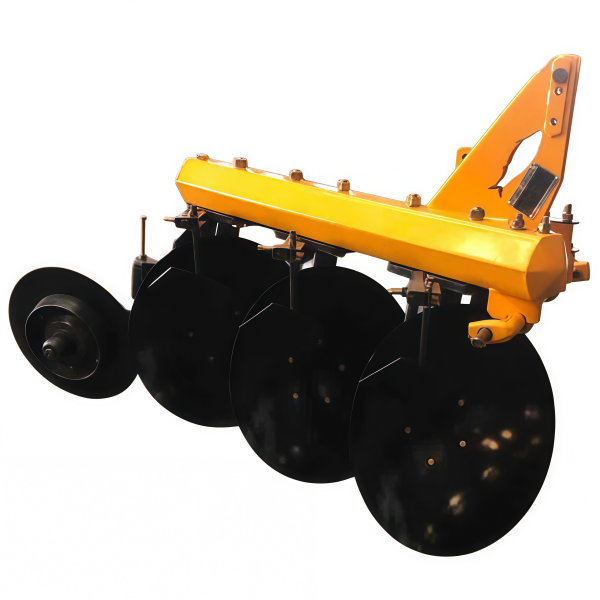

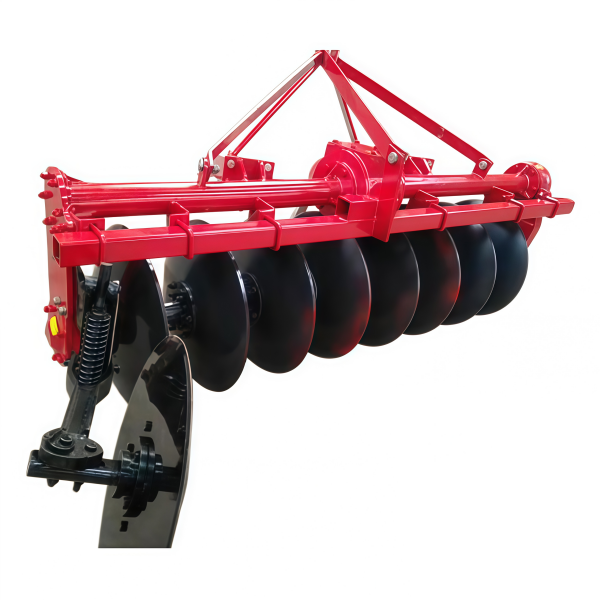

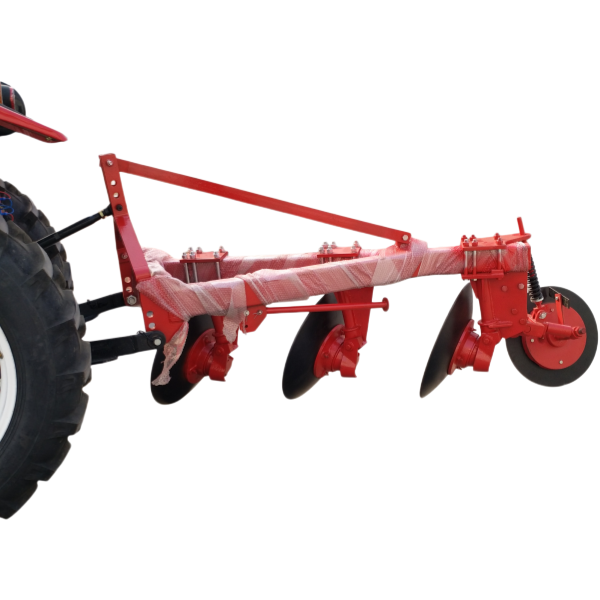

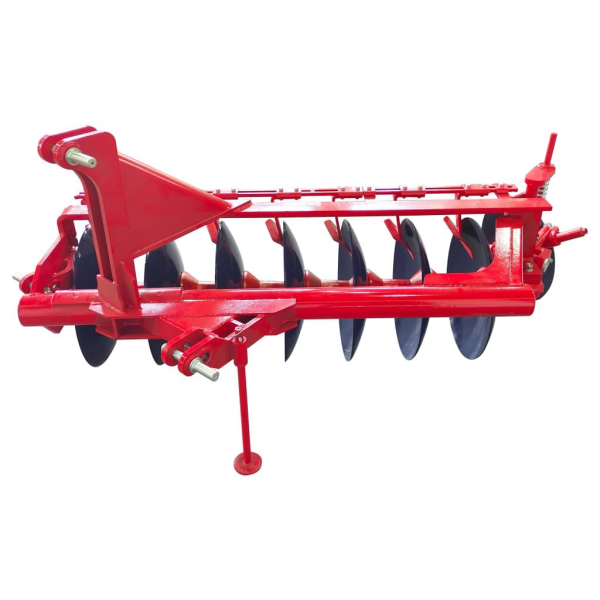

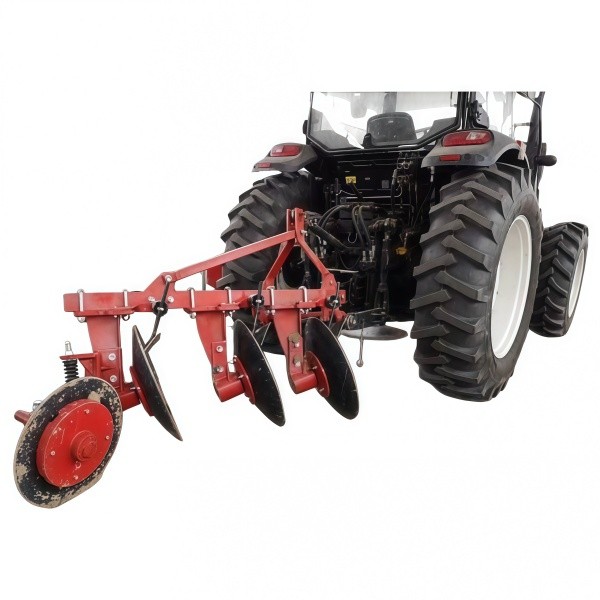

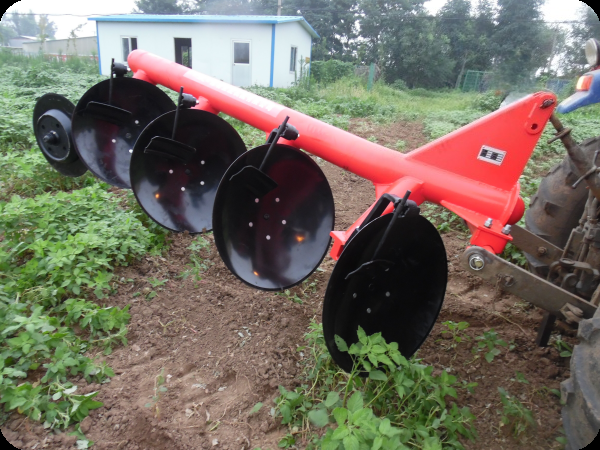

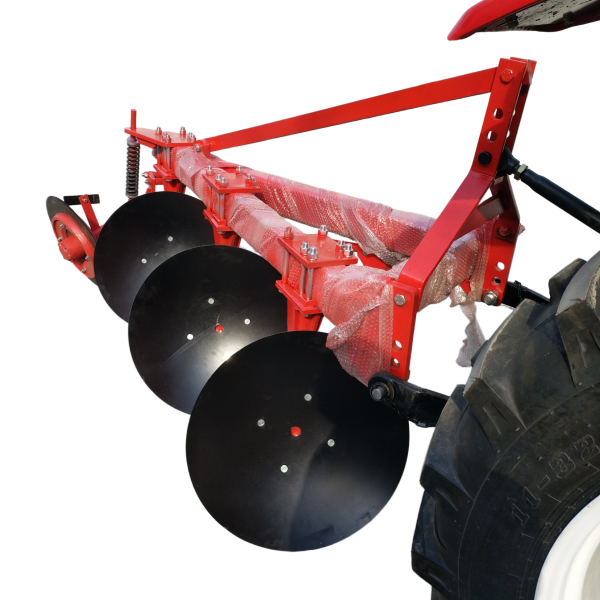

Deep tillage implement for inverting soil layers, breaking hardpans and burying crop residues and weeds. Improves soil structure, enhances water retention and storage capacity — a foundation of soil cultivation.
Product Parameters
Model | Morking Width(MM) | (KG) | Working Depth(MM) | Matched Power(HP) | No.of Disc | Linkage |
ILYO(T)-220 | 400 | 150 | 200 | ≥18 | 2 | Three-Point Mounted |
1LYQ(T)-315 | 450 | 180 | 180 | ≥25 | 3 | |
1LYQ(T)-320 | 600 | 190(200) | 200 | 25-40 | 3 | |
1LYO(T)-325 | 700 | 420(430) | 250 | ≥50 | 3 | |
1LYO(T)-425 | 1000 | 480(490) | 250 | 80-100 | 4 | |
1LYQ(T)-525 | 1250 | 530(560) | 250 | 100-120 | 5 |
