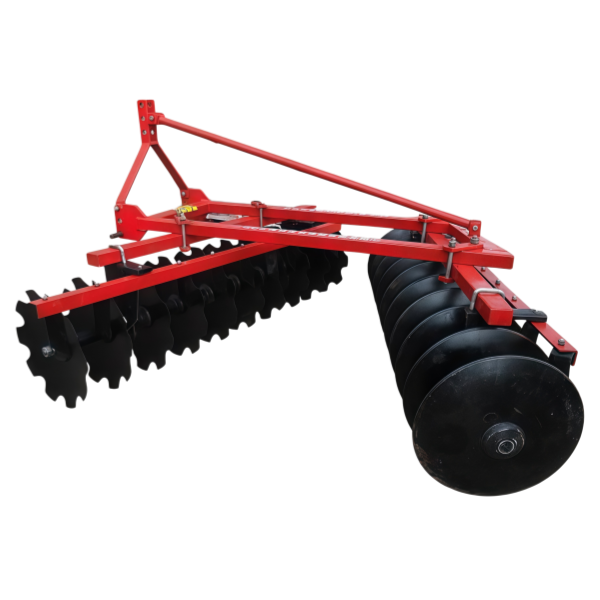

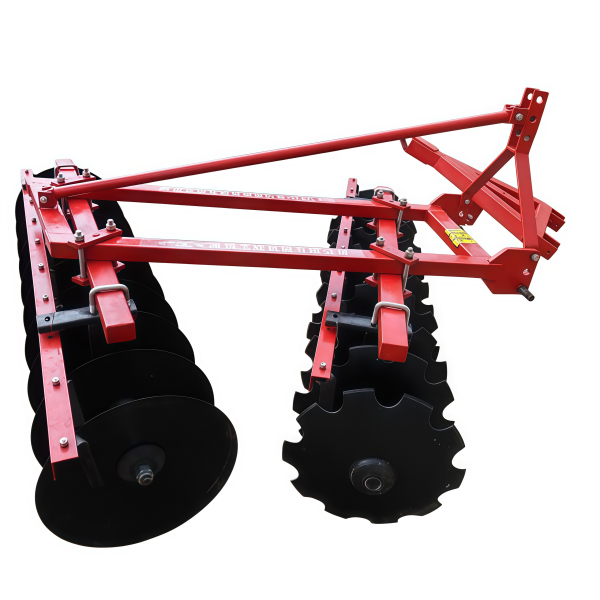

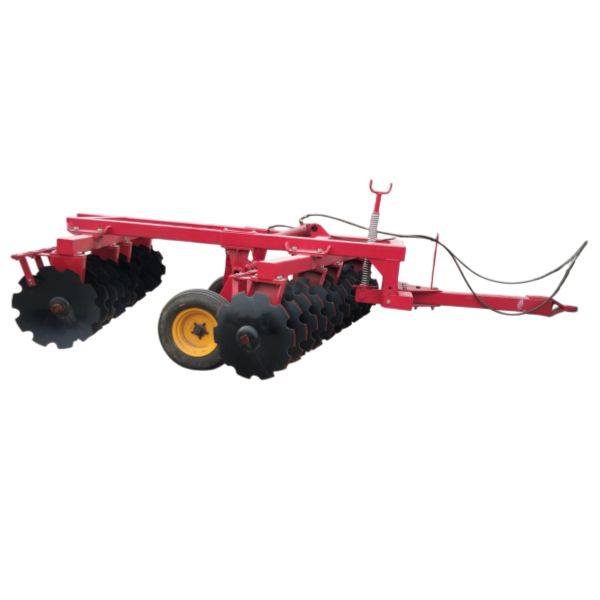

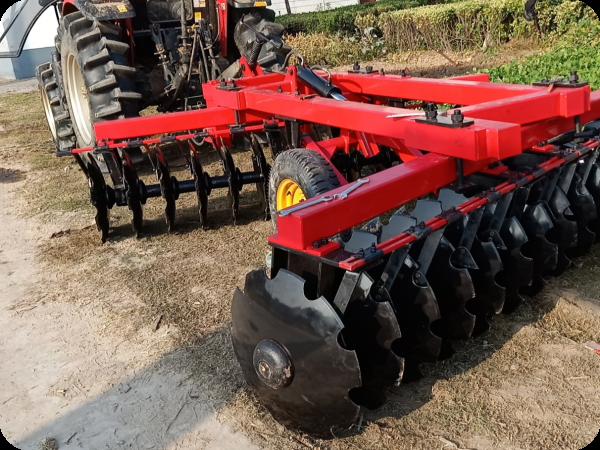

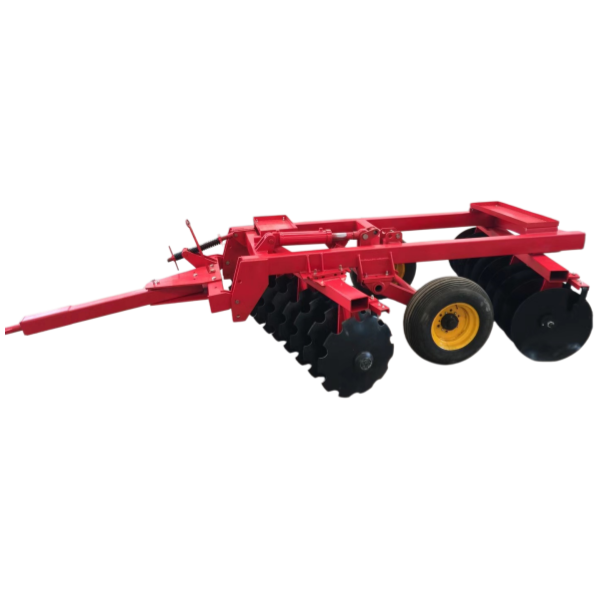

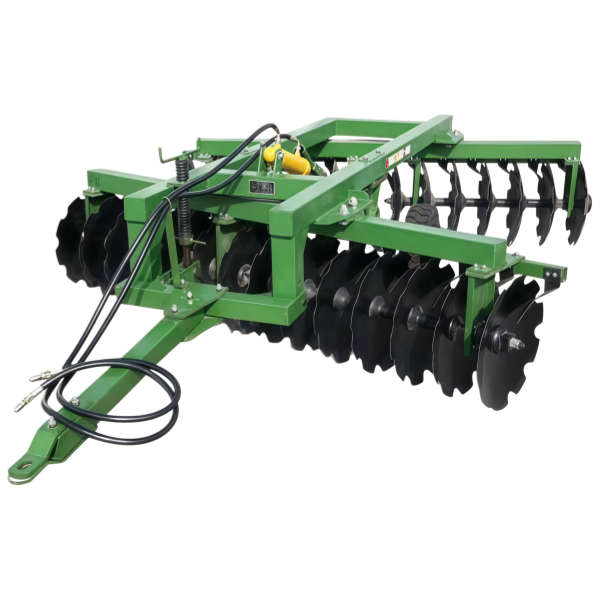

Surface tillage and land preparation implement. Breaks soil clods, levels the field and removes weeds and stubble — creating a fine, loose seedbed for improved sowing quality.
Product Parameters
Model | Working Width(M) | Weight(KG) | Working Depth(CM) | No.Of Disc | Linkage | Dianeter of Disc(MM) | Matched Power(HP) |
1B0X-1.3 | 1.3 | 220 | 10 | 14 |
Three-point mounted | 460 | 20-25 |
IBQX-1.5 | 1.5 | 240 | 10-14 | 16 | 460 | 25-25 | |
1BQX-1.9 | 1.9 | 280 | 10-14 | 20 | 460 | 30-45 | |
1BQX-2.1 | 2.0 | 300 | 10-14 | 22 | 460 | 40-55 | |
1BQX-2.7 | 2.7 | 480 | 10-14 | 28 | 460 | 60-70 | |
1BQX-3.4 | 3.4 | 1100 | 10-14 | 42 | 460 | 80-100 | |
1BJX-1.7 | 1.7 | 390 | 14 | 16 | 580 | 45-50 | |
IBJX-2.0 | 2.0 | 434 | 14 | 18 | 560 | 50-55 | |
1BJX-2.2 | 2.2 | 463 | 14 | 20 | 560 | 55-65 | |
IBJX-2.4 | 2.4 | 604 | 14 | 22 | 560 | 65-75 | |
18Z-2.0 | 2 | 1150 | 200 | 18 | Trailed | 660 | 60-80 |
1BZ-2.5 | 2.5 | 1350 | 200 | 24 | 660 | 80-100 | |
1BZ-3.0 | 3 | 1430 | 200 | 28 | 660 | 100-120 | |
18Z-3.4 | 3.4 | 1550 | 320 | 34 | 660 | 120-150 |
