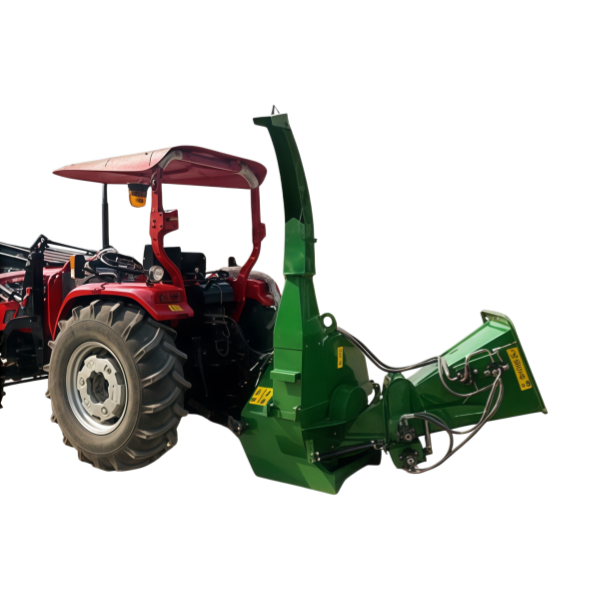

Branch and wood material chipping equipment. Chops pruned branches, orchard and landscaping waste into chips or particles for field incorporation or biomass energy conversion.
Product Parameters
Model | Engine Item | Rated Power | Start Mode | Chipper Capacity | Flywheel Diameter | Feed Hopper Inner Opening | Weight | Working |
DWC-18/ | CY1115 | 16.2KW/220 | Electric start | 150MM (Max.To 200MM) | 640MM | 200*220MM | 650KG | 7-11 Cbm/h |
Model | Flywheel | Flywheel | Blades | Blades Material | Blades Size(MM) | Feed Hopper Outer Opening(MM) | Structure Weight(KG) | Power Required(HP) |
BX42S | 630MM | 18MM | 4 | 65MM | 210*60*9 | 500*500 | 225 | 35-60 |
BX42R | 630MM | 18MM | 4 | 65MM | 210*60*9 | 500*500 | 340 | 35-60 |
BX62R | 740MM | 25MM | 4 | 65MM | 240*60*10 | 580*580 | Extended bucket 538 | 60-80 |
BX92R | 940MM | 25MM | 4 | Cr12 | 320*100*16 | 620*620 | 655 | 75-100 |
