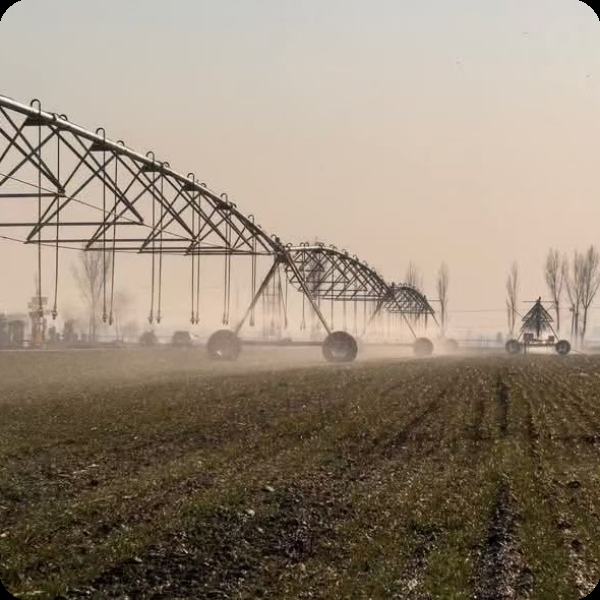

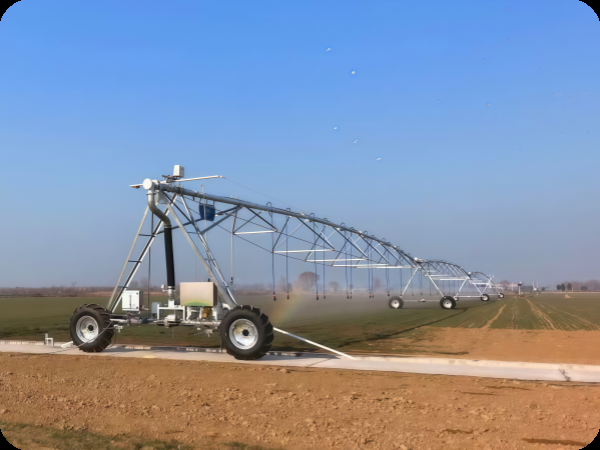

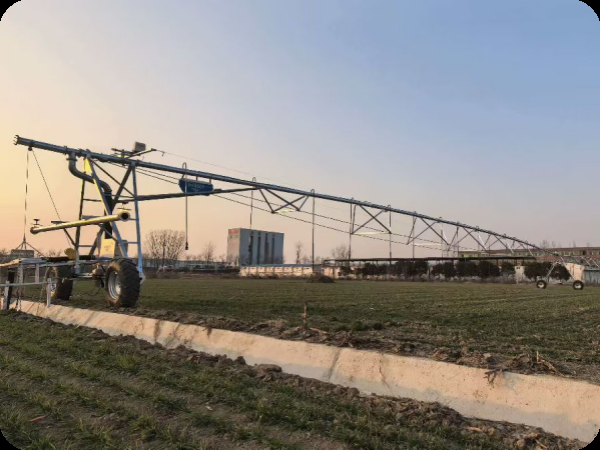

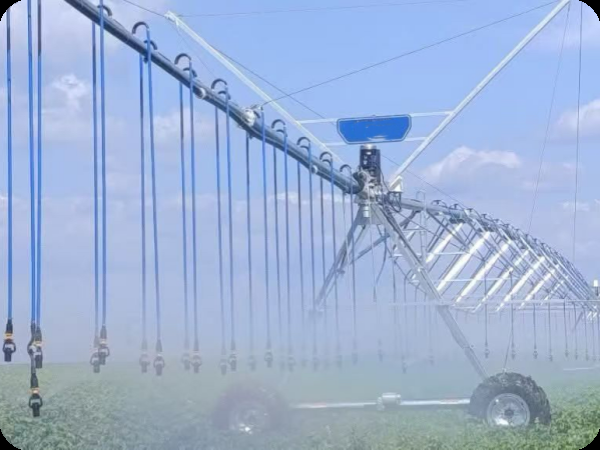

Large-scale center pivot or linear move irrigation equipment for water-efficient farming. Wide coverage with uniform water distribution — effectively alleviates drought and ensures stable, high-yield crop production.
Product Parameters
SPECIFICATION | Center Pivot 10H A | Center Pivot 20HA | Center Pivot 30HA | Center Pivot 40HA |
Configuration | 3*56+6 | 4*56+24 | 5*62+12 | 6*56+24 |
Main Pipe D*Thickness | 168mm*3mm | 168mm*3mm | 168mm*3mm | 168mm*3mm |
Span Connection | Balland Socket/Hose | Balland Socket/Hose | Ball and Socket/Hose | Ball and Socket/Hose |
Truss Rod | 20mm | 20mm | 22mm | 20mm |
Anti-corrosion | Hot Dip Galvanization | Hot Dip Galvanization | Hot Dip Galvanization | Hot Dip Galvanization |
Operating Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Power supply | Local power | Local power | Local power | Local power |
Tire | 14.9-24(or 16.9-24) | 14.9-24(or 16.9-24) | 14.9-24(or 16.9-24) | 14.9-24(or 16.9-24) |
Motor | Standard 40:1(or 20:1) | Standard 40:1(or 20:1) | Standard 40:1(or 20:1) | Standard 40:1(or 20:1) |
Gear box | Standard 50:1 | Standard 50:1 | Standard 50:1 | Standard 50:1 |
Sprinkler | Nelson D3000 (or Nelson R3000) | Nelson D3000 (or Nelson R3000) | Nelson D3000 (or Nelson R3000) | Nelson D3000 (or Nelson R3000) |
Regulator | Nelson 15PSI | Nelson 15PSI | Nelson 15PSI | Nelson 15PSI |
Span Cable | 11C Armored cable | 11C Armored cable | 11C Armored cable | 11C Armored cable |
Motor Cable | 4C Armored cable | 4C Armored cable | 4C Armored cable | 4C Armored cable |
Water Inlet Pressure | 0.2MPa | 0.2MPa | 0.2MPa | 0.2MPa |
Inlet Flow | 30 | 60 | 100 | 140 |
irrigation system clearance | 2.9m(or 4.6m) | 2.9m(or 4.6m) | 2.9m(or 4.6m) | 2.9m(or 4.6m) |
Sprinkler Distance | 2.96m | 2.96m | 2.96m | 2.96m |
Control Panel | Standard (or Automatic shutofIAutomatic Reverse) | Standard (or Automatic shutofl/Automatic Reverse) | Standard (or Automatic shutofl/Automatic Reverse) | Standard(or Automatic shutoff/Automatic Reverse) |
Electrical Components | Schneider;Honeywell; Eagle Signal;Mitsubishi; | Schneider;Honeywell; Eagle Signal;Mitsubishi; | Schneider;Honeywell; Eagle Signal;Mitsubishi; | Schneider;Honeywell; Eagle Signal;Mitsubishi; |
Protective Function | Option:Reverse; Automatic shutoff; | Option:Reverse; Automatic shutoff; | Option:Reverse; Automatic shutoff; | Option:Reverse; Automatic shutoff; |
End Gun | Option:SR75+ControlValve +Booster Pump/TWIN101+ Control Valve+Booster Pump | Option:SR75+ControlValve +Booster Pump/TWIN101+ Control Valve+Booster Pump | Option:SR75+ControlValve +Booster Pump/TWIN101+ Control Valve+Booster Pump | Option:SR75+ControIValve +Booster Pump/TWIN101+ Control Valve+Booster Pump |
Sprinkler(optional) | Nelson R3000,Komet,Senninger | |||
